Establishing an SSH Tunnel to Remotely Access a Mac Using AFP and VNC

Steve January 28 Networking , , with 7 and 1
Home/Networking/Establishing an SSH Tunnel to Remotely Access a Mac Using AFP and VNC

The ability to remotely access a computer on a home network while away from home can often prove very useful.

Employing a technique known as SSH (Secure Shell) tunnelling this article describes how to securely access files on a remote computer using AFP (Apple Filing Protocol) and share that computer’s screen using VNC (Virtual Network Computing).





1. Overview

The example described throughout uses Apple hardware: a MacBook, an iMac, an AirPort Extreme and Apple software: OS X Lion 10.7.5, AirPort Utility (see note below). However, it can be adapted for other hardware and software configurations.

Remote file sharing and screen sharing through an SSH tunnel

Remote file sharing and screen sharing through an SSH tunnel



The diagram above depicts a MacBook (local computer) using SSH to connect remotely to an iMac (remote computer) on a home network.

Instead of connecting directly to ports 548 (file sharing) and 5900 (screen sharing) on the iMac, the MacBook tunnels these connections through the SSH connection. This method is useful when circumventing firewalls that can often block ports 548 and 5900. In addition, tunnelling these connections through SSH renders them more secure than they would otherwise be.

Before continuing I recommend two things: assigning the home computer you’ll access remotely a static private IP address and providing a static hostname for the Airport Extreme’s dynamic public IP address.



The AirPort Utility screenshots are from version 5.6.x. As of November 2014 the current version of AirPort Utility is 6.3.1. Unfortunately, some functionality available in v5.6.x has been removed from v6.

For OS X Leopard, Snow Leopard and Lion, v5.6.x can be downloaded from Apple. However, on later versions of OS X the AirPort Utility v5.6.x installer may fail.

The AirPort Utility v5.6.1 application without the installer is available here on Corey J Mahler’s site.





2. Configuring the Router for Port Forwarding

The computer I’ll be connecting to remotely is an iMac, which I’ll call the remote computer, on my home network. This remote computer is connected to an AirPort Extreme, which I’ll refer to as the router, and has a static internal IP address of 192.168.1.10. The local computer I’ll be using to connect to the remote computer is a MacBook.

The first task is to configure the router to handle remote connection requests on port 22 from the local computer and send or forward them to port 22 on the remote computer. This is a process known as port forwarding or port mapping. I use AirPort Utility to configure the AirPort Extreme.

Open AirPort Utility located in the /Applications/Utilities folder.

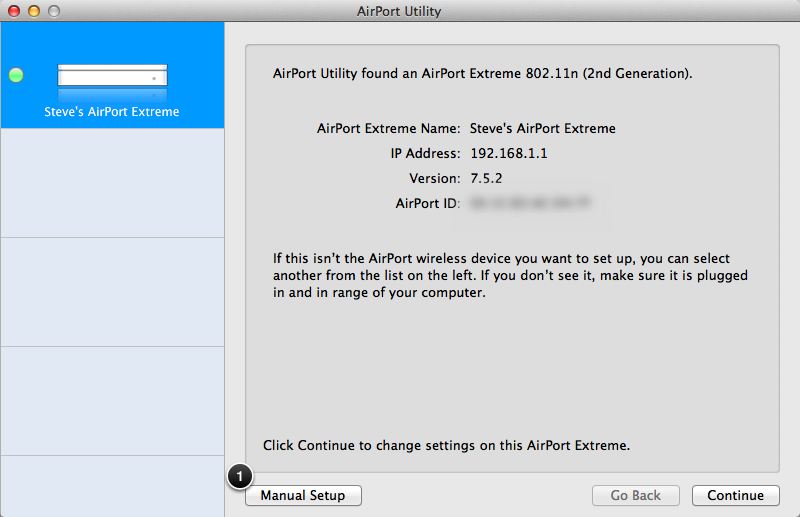

Initial screen of AirPort Utility

Initial screen of AirPort Utility

1. Click on Manual Setup to continue.

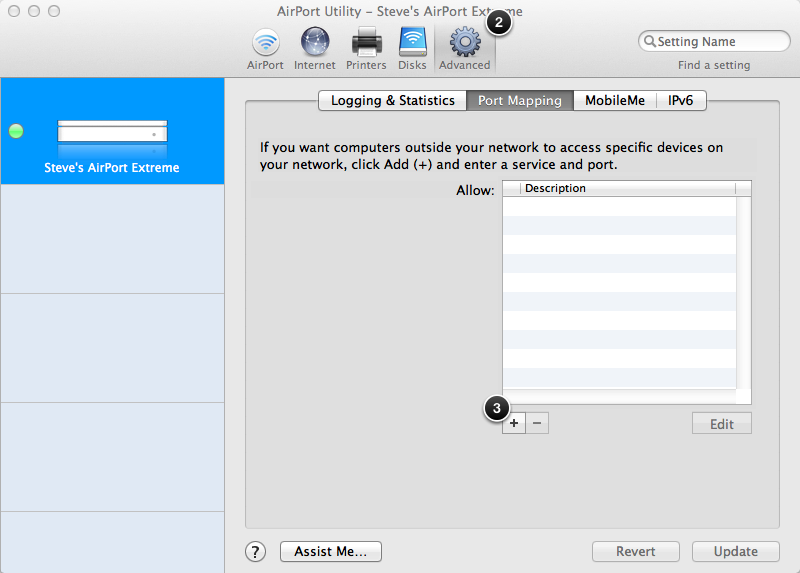

Port Mapping tab of AirPort Utility

Port Mapping tab of AirPort Utility

2. Click the Advanced icon.

3. On the Port Mapping tab click + to configure a service and port to forward to.

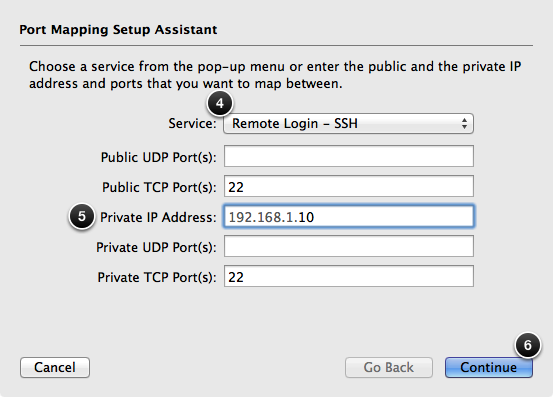

Initial screen of Port Mapping Setup Assistant

Initial screen of Port Mapping Setup Assistant

4. Select Remote Login – SSH from the Service drop-down menu. The Public TCP Port(s) and Private TCP Port(s) fields are automatically populated with 22: the default SSH port.

5. Enter the Private IP Address of the computer on the home network you want to access remotely. This ensures that when the router receives an external remote connection request on port 22 it will forward it to port 22 of the computer on the local network with the IP address of 192.168.1.10.

6. Click Continue to go to the next screen of the Port Mapping Setup Assistant.

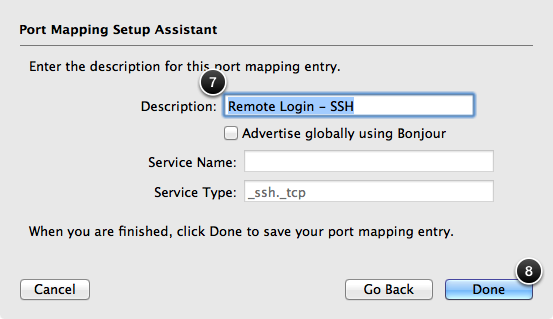

Final screen of Port Mapping Setup Assistant

Final screen of Port Mapping Setup Assistant

7. The Description is automatically populated with the service name: Remote Login – SSH.

8. Click Done to return to the Port Mapping tab.

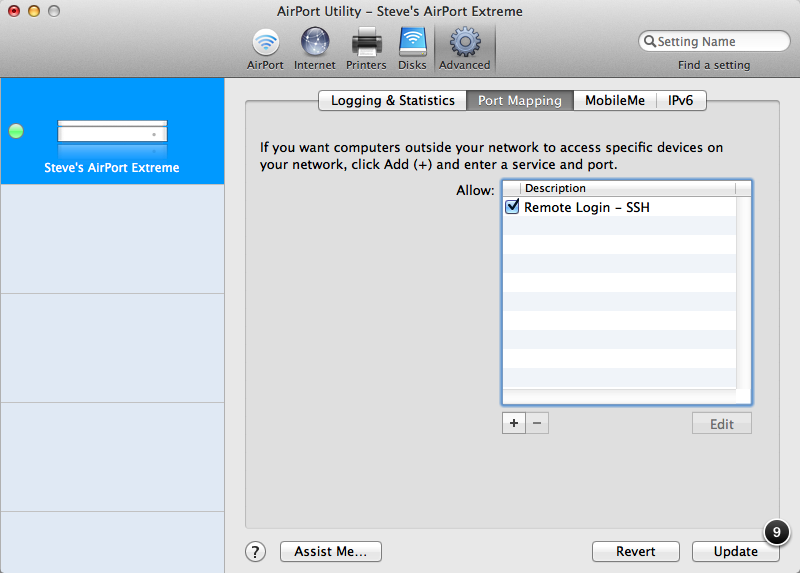

Port Mapping tab before applying updates

Port Mapping tab before applying updates

9. Click Update to apply the changes.





3. Enabling Screen Sharing, File Sharing and Remote Login on the Remote Computer

Next, Screen Sharing, File Sharing and Remote Login need to be enabled on the remote computer.

On this computer open System Preferences and click Sharing.

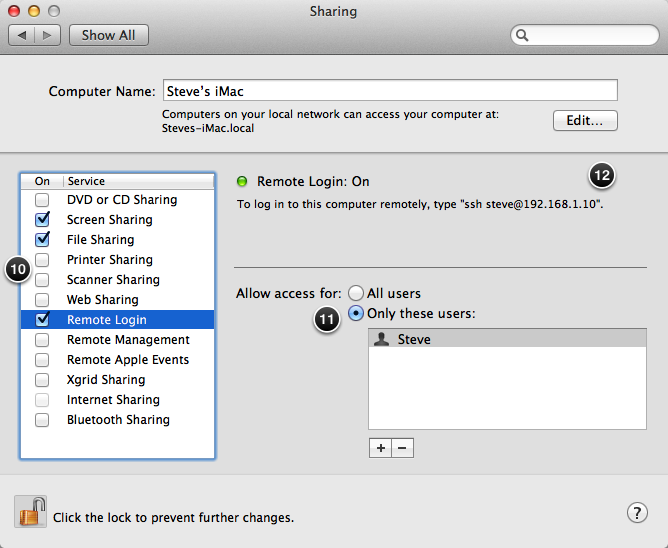

Sharing pane of System Preferences with Screen Sharing, File Sharing and Remote Login enabled

Sharing pane of System Preferences with Screen Sharing, File Sharing and Remote Login enabled



10. Click the Screen Sharing, File Sharing and Remote Login options.

11. For Remote Login I prefer to limit the users who have access.

12. The message To log in to this computer remotely, type “ssh steve@192.168.1.10” is a little misleading. The IP address 192.168.1.10 is only applicable when logging in from another computer on the same local network. Logging in from a computer outside of the local network requires the external public IP address of, in this case, the AirPort Extreme or a hostname that resolves to that IP address. More on that shortly.





4. Establishing an SSH Tunnel

Having configured the router and remote computer we can establish the SSH tunnel from the local computer to the remote computer using either the ssh command in the OS X Terminal application or a GUI front-end to the ssh command such as SSH Tunnel Manager.





5. Using OS X Terminal to Establish the SSH Tunnel

To create the SSH tunnel using the OS X Terminal application open Terminal in the /Applications/Utilities/ folder on the local computer. In the Terminal window type:


	ssh -f user@hostname -L 15548:127.0.0.1:548 -L 15900:127.0.0.1:5900 sleep 60


Where;

user is the login name on the remote computer.

hostname is the remote computer’s IP address or name. For information on assigning a static hostname to a dynamic IP address see Resolving a Static Hostname to a Dynamic IP Address Using DynDNS Free.

15548:127.0.0.1:548 is the port:host:hostport parameter where port is the port on the local computer to be forwarded to the given port on the remote computer, host is the localhost on the remote computer and hostport is the port on the remote computer. Using a privileged port, 1024 or below, on the local computer requires the use of sudo.

My example uses two port:host:hostport parameters each proceeded by the -L option. The first: -L 15548:127.0.0.1:548 is for AFP, the second: -L 15900:127.0.0.1:5900 is for VNC.

sleep 60 will terminate the tunnel after the allotted time, in this case 60 seconds, but only if there’s no active connection. The sleep option will not work when the -N option is included in the ssh command as this option disables remote commands.

The first time the SSH tunnel is established you’ll be prompted with:


	The authenticity of host 'hostname (12.345.67.890)' can't be established.
	RSA key fingerprint is xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx.
	Are you sure you want to continue connecting (yes/no)?


Type yes and press enter.

You’ll be prompted with the warning:


	Warning: Permanently added 'hostname,12.345.67.890' (RSA) to the list of known hosts.
	Password:


Enter the password for the user on the remote computer you’re logging in as and press enter.

Now that the SSH tunnel is established and having specified a sleep parameter of 60 we have only 60 seconds to make a connection to the remote computer before the tunnel disappears. The presence of the tunnel can be confirmed by typing:


	ps -ax | grep ssh


If the tunnel is present the results will include a line of text similar to the highlighted line:


	2234 ??         0:00.05 /usr/bin/ssh-agent -l
 	6455 ??         0:00.00 ssh -f user@hostname -L 15548:127.0.0.1:548 -L 15900:127.0.0.1:5900 sleep 60
 	6469 ttys000    0:00.00 grep ssh


At this point the SSH tunnel could be manually closed by terminating the process. While there seems little point in establishing the tunnel only to manually close it shortly after, it’s useful to know that it can be done and how to do it. To manually close the SSH tunnel type:


	kill 6455


Where 6455 is the process number of the SSH tunnel.

On a side note, the list of known hosts is stored in the file known_hosts in the hidden folder ssh in your user directory. To see the contents of known_hosts type:


	cat ~/.ssh/known_hosts


Although not necessary in this situation a specific entry for a known host e.g. 12.345.67.890 can be removed by typing:


	ssh-keygen -R 12.345.67.890


The next time you establish a tunnel to this host you’ll be prompted to authenticate again.





6. Using SSH Tunnel Manager to Establish the SSH Tunnel

An alternative to using Terminal to establish the SSH tunnel is SSH Tunnel Manager.

Having opened SSH Tunnel Manager, press ⌘, to open the Preferences window.



Preferences window of SSH Tunnel Manager

Preferences window of SSH Tunnel Manager

13. Click + to create a new SSH tunnel configuration.



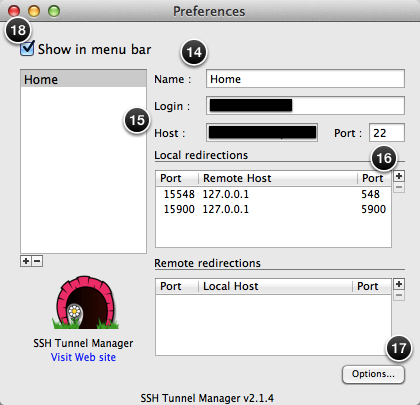

Configuring a new SSH tunnel using SSH Tunnel Manager

Configuring a new SSH tunnel using SSH Tunnel Manager

14. Enter a Name for the SSH tunnel configuration.

15. Enter the Login and Host details. These correspond to user and hostname in our Terminal command. Set the Port to 22 the default SSH port.

16. Click + to create a new Local Redirection and enter the Port, Remote Host and Port details. These correspond to the port:host:hostport combination in our Terminal command.

17. Before closing the Preferences window click Options to see the command line equivalent of the SSH tunnel configuration. This is similar to our Terminal command.



Command line created by SSH Tunnel Manager

Command line created by SSH Tunnel Manager

18. Close the Preferences window by clicking at the top-left corner. To establish the tunnel in SSH Tunnel Manager press ⌘T to display the list of tunnel configurations.



List of tunnel configurations in SSH Tunnel Manager

List of tunnel configurations in SSH Tunnel Manager

19. Click the grey circle to establish the SSH tunnel. You’ll be prompted for the password associated with the Login and Host details on the remote computer.

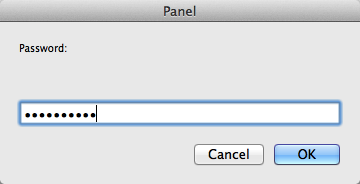

Password prompt in SSH Tunnel Manager

Password prompt in SSH Tunnel Manager



List of tunnel configurations in SSH Tunnel Manager showing active tunnel

List of tunnel configurations in SSH Tunnel Manager showing active tunnel

20. To close the active SSH tunnel click the grey circle.





7. Connecting to the Remote Computer

Having established an active SSH tunnel we can now connect to the remote computer. In the OS X Finder press ⌘K for the Connect to Server panel.

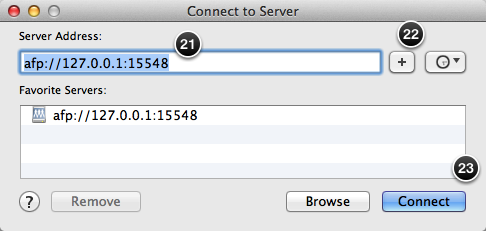

The Finder’s Connect to Server Panel

The Finder’s Connect to Server Panel

21. As we’re connecting to the remote computer using AFP we enter afp://127.0.0.1:15548 for the Server Address where 127.0.0.1 is the IP address of the remote computer and 15548 is the port on the local computer to be forwarded to port 548, the default AFP port, on the remote computer.

22. Click + to add this server address to the list of favourites, if desired.

23. Click Connect to establish the connection to the remote computer. You’ll be prompted to enter a login name and password that exists on the remote computer.

An alternative to using the Connect to Server panel is to enter the following command in Terminal:


	open afp​://127.0.0.1:15548

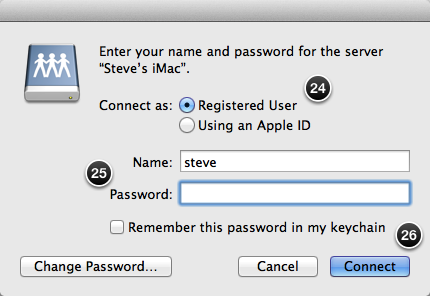

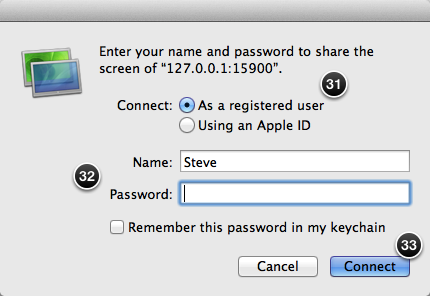

Entering the login details for the remote user in NetAuthAgent

Entering the login details for the remote user in NetAuthAgent

24. Select Connect as Registered User.

25. Enter your Name and Password on the remote computer.

26. Click Connect and you’ll be asked to select a volume on the remote computer to mount on the local computer.

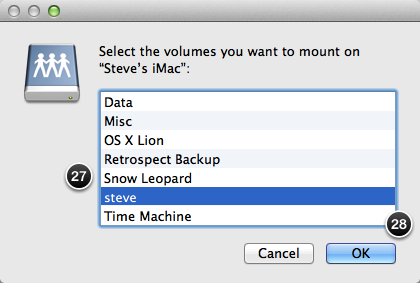

Selecting a remote volume to mount in NetAuthAgent

Selecting a remote volume to mount in NetAuthAgent

27. Select a volume on the remote computer to mount.

28. Click Connect and the selected remote volume will be displayed in the Finder of the local computer.





8. Sharing the Remote Computer’s Screen

To share the remote computer’s screen we can use the Screen Sharing application located in /System/Library/CoreServices/.

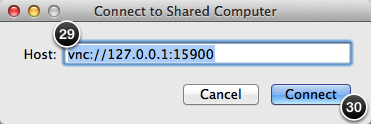

Screen Sharing’s Connect to Shared Computer panel

Screen Sharing’s Connect to Shared Computer panel

29. As we’re connecting to the remote computer using VNC we enter vnc://127.0.0.1:15900 for the Host: where 127.0.0.1 is the IP address of the remote computer and 15900 is the port on the local computer to be forwarded to port 5900, the default VNC port, on the remote computer.

30. Click Connect to share the remote computer’s screen. You’ll be prompted to enter a login name and password that exists on the remote computer.

An alternative to using the Screen Sharing application is to enter the following command in Terminal:


	open vnc​://127.0.0.1:15900




Entering the login details for the remote user in NetAuthAgent

Entering the login details for the remote user in NetAuthAgent

31. Select Connect as Registered User.

32. Enter your Name and Password on the remote computer.

33. Click Connect and you’ll be asked to select a volume on the remote computer to mount on the local computer.
